Award winning Fishing Kayak incorporating a modular, tri-console system, with a motor propelled option featuring multiple electronics features.
AWARDS:
ICAST 2014 - Best of Show - Predator XL
ICAST 2014 - Best Boat - Predator XL
ICAST 2016 - Best Boat - Predator PDL
The Old Town Predator series is a group of high end fishing kayaks. The Advanced R&D team at Johnson Outdoors Watercraft was tasked with utilizing an existing motor unit from a sister company; Minn Kota motors, and designing a console that connects to the Predator 13 hull.

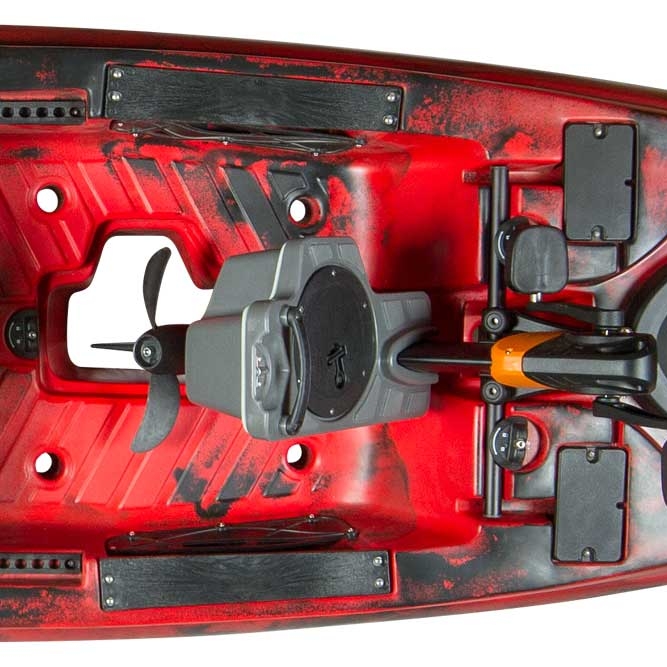

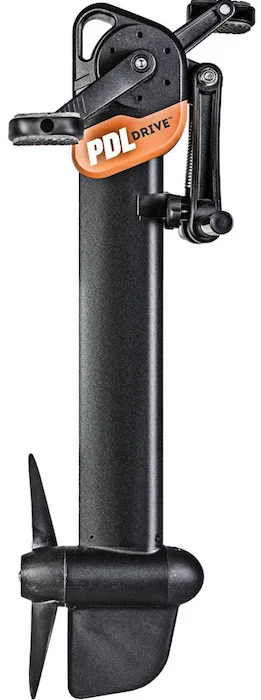

Before leaving Johnson Outdoors I had produced the Industrial design for the new PDL Drive and created the initial boat CAD for how the system would integrate into the Predator Kayak. I also re-designed the seat to incorporate a storage pocket underneath.
Role: Responsible for all Industrial Design work from ideation phase to production CAD (Solidworks) geometry.
Project duration: 09.2013 – 02.2014 @ Johnson Outdoors Watercraft
Project status: Predator XL launched summer 2014, Predator PDL launched summer 2016
![Predator XL](https://images.squarespace-cdn.com/content/v1/585b28fae6f2e12ed969da5c/1483462597278-SE2MIHISAPQXXF3STQVV/MC_PORTFOLIO16-a.jpg)
Interchangeable Console Options:
Originally I was assigned to future proof the Predator XL to fit a motor (Minn Kota), utility, flush (Exo-Ridge) and peddle drive console. It was determined that the peddle drive would take much longer to develop and may require a different port design. For this reason, only three consoles were developed to go with the Predator XL.

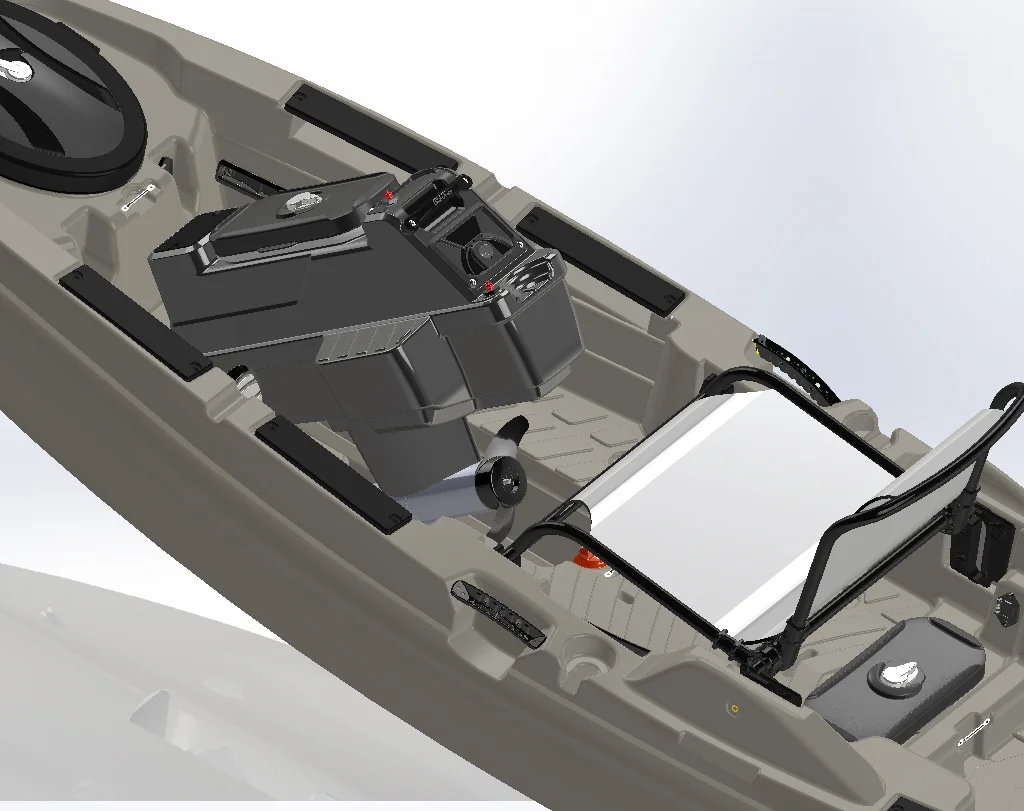

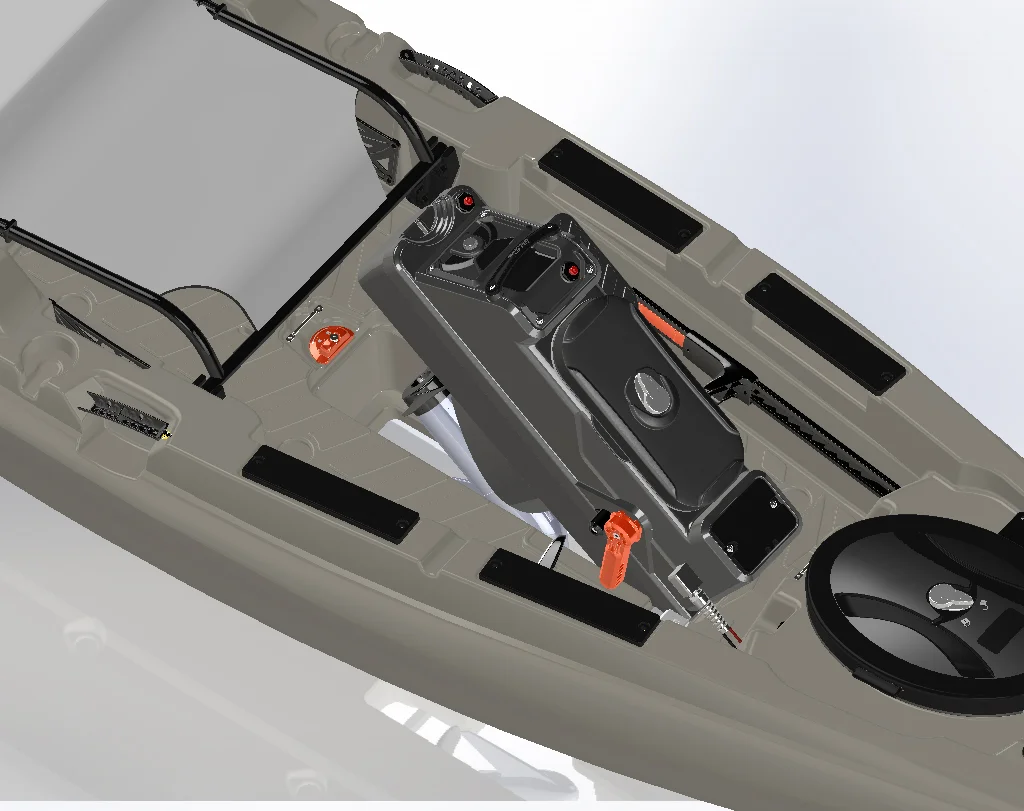

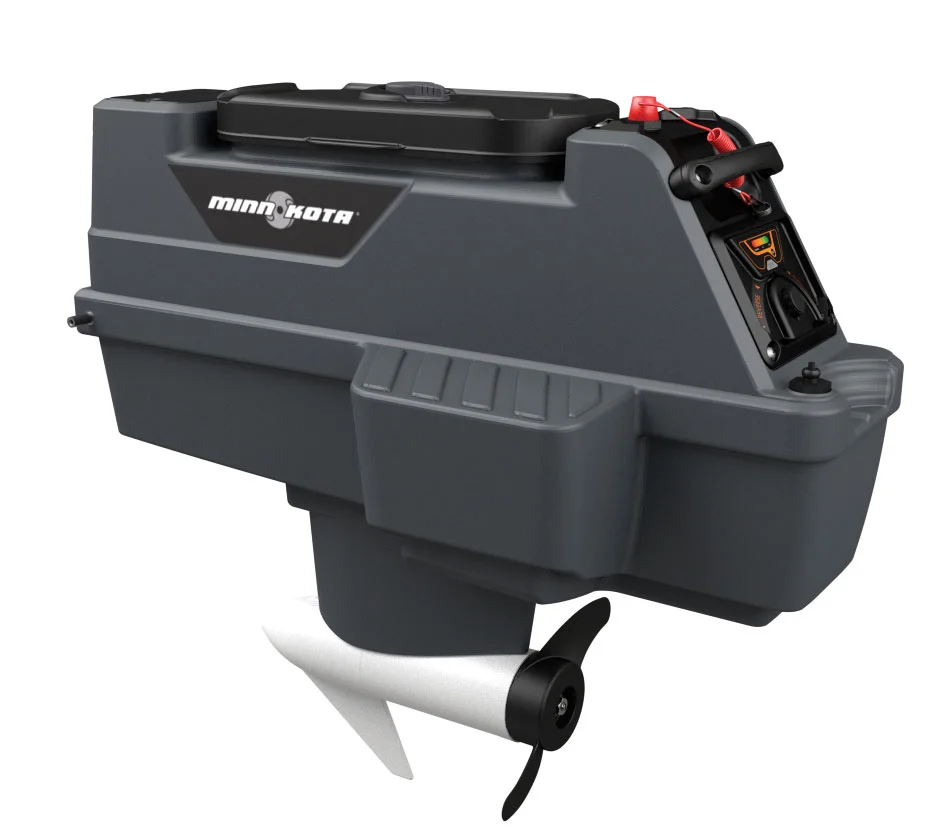

Minn Kota Console:
-45-pound thrust saltwater grade electric motor.
-Variable speed control with forward and reverse.
-LED charge indicator.
-Internal water proof USB charger.
-Sonar head unit mount (top) and sonar transducer mount (bottom) with internal wire and battery storage.
-Dry storage compartment.
-Easy raise motor automatically disconnects kill-switch and deploys a kickstand to help clear weeds from prop or avoid obstructions.
Utility Console:
-Sonar head unit mount (top) and sonar transducer mount (bottom) with internal wire and battery storage.
-Dry storage compartment.
Exo-Ridge Console:
-Continuation of Exo-Ridge pattern on the Predator deck to provide an unobstructed fishing platform (mainly for fly-fishing).
-Transducer mount on boat hull.
